MetaDE: A Nested Architecture for Algorithms Optimizing Algorithms

In the previous lesson, evolutionary systems accumulated capability through the closed loop of "generation–evaluation–selection–inheritance." This lesson pushes that idea one layer deeper: instead of merely having algorithms solve problems, we have algorithms improve algorithms.MetaDE is exactly this kind of nested evolutionary architecture—it splits Differential Evolution (DE) into an inner and an outer layer, turning "algorithms optimizing algorithms" into an executable computational process.

1. Division of Labor: Who Solves, Who Evolves

MetaDE organizes DE into an inner and an outer layer, and the two layers operate on completely different objects:

Inner DE (task layer): This layer targets the real optimization task, maintains a population of candidate solutions, and repeatedly performs mutation, crossover, and selection to gradually approach high-quality solutions for the task. It answers the question: "How well is this problem being solved?"
Outer DE (meta layer): This layer targets the algorithm itself. Each individual in the population is not a task solution but a complete "mutation strategy + parameter" configuration—for example, which mutation scheme to use and what values to assign to the scaling factor and crossover probability. It answers the question: "How well does this algorithm configuration perform?"

Therefore, the outer layer does not directly optimize task variables—those are always handled by the inner layer. What the outer layer changes is simply the inner layer's "playbook."

2. The Interactive Loop: Configuration Delivery and Performance Feedback

The two layers are coupled through a bidirectional channel, forming a closed loop: the outer layer first produces a set of algorithm configurations and delivers them (→) to the inner layer; the inner layer runs on the task according to those configurations, then returns task performance (→) to the outer layer; the outer layer uses this to retain and recombine better-performing configurations, then produces the next round of configurations. The entire process can be summarized as: outer configurations → inner solving → task performance → outer update, repeating cyclically.

This closed loop brings a key property: the inner algorithm's mutation strategies and parameters are no longer set once by a human and fixed forever, but are continuously rewritten as the outer search proceeds—giving the algorithm a channel for self-improvement.

3. Prerequisites for Execution: Parallelism and Cost Trade-offs

The nested structure is not without cost. Every outer evaluation requires fully running one configuration through the task, which significantly amplifies evaluation cost; the larger the outer population, the higher the total overhead. This is precisely why MetaDE relies on GPU parallelism: multiple inner configurations can be evaluated simultaneously, dramatically compressing the time required for a single outer iteration, making nested meta-evolution practically executable in engineering terms. Conversely, if available parallel resources are insufficient, reducing the outer-layer size or lowering inner evaluation precision is often more realistic than blindly expanding the search.

Common Misconception

Equating MetaDE with "manual tuning" is inaccurate. Manual tuning is a one-time trial-and-error performed by a human outside the loop, whereas MetaDE brings the configurations themselves into the evolutionary loop: configurations are repeatedly generated, evaluated, and recombined, and the search targets combinations of "mutation strategies + parameters"—not just a few numerical values.

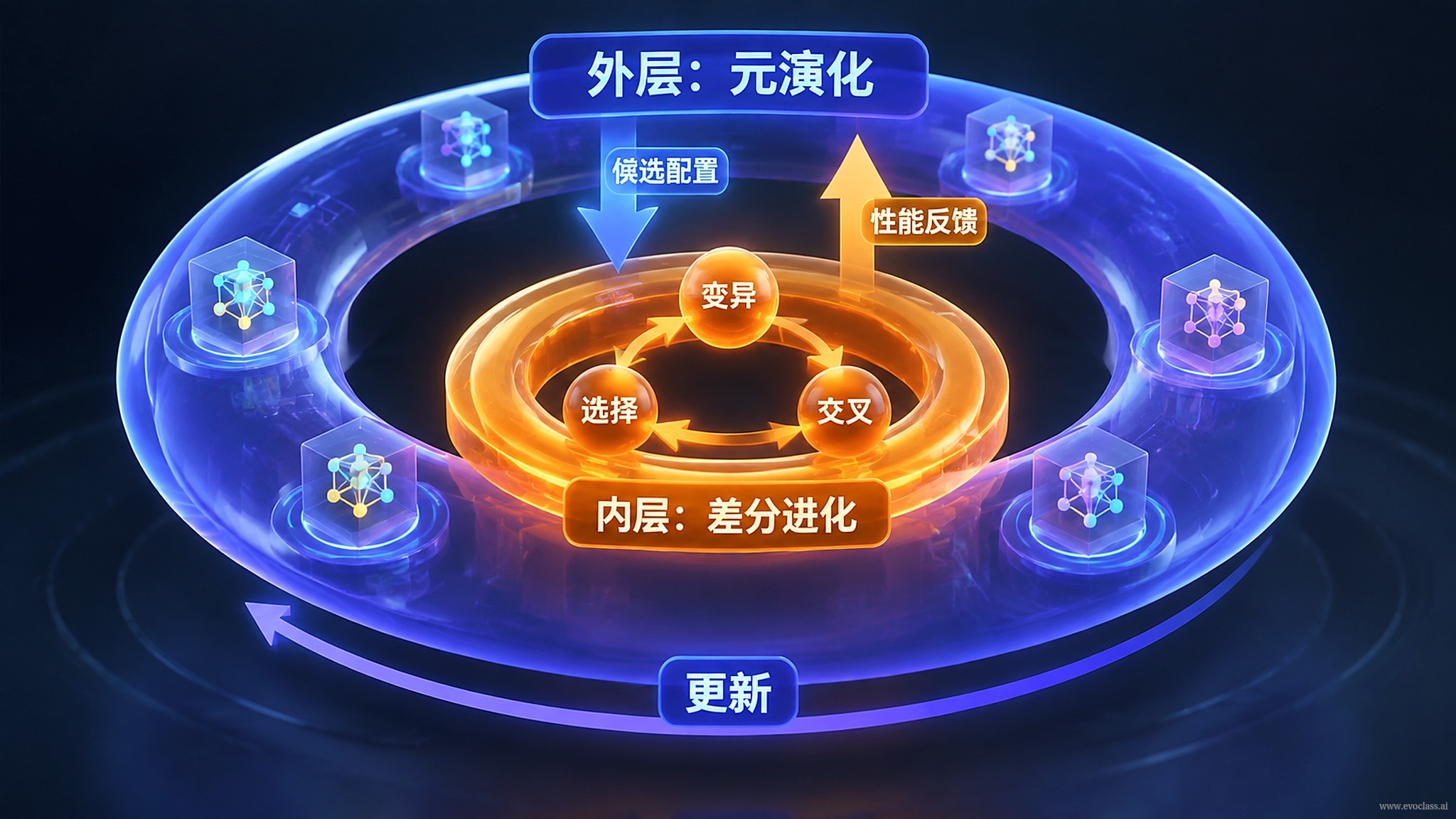

MetaDE Nested Evolutionary Architecture

The diagram illustrates MetaDE's inner and outer two-layer structure: individuals in the outer meta-layer population are complete mutation strategy and parameter configurations responsible for evolving algorithm settings; the inner task layer maintains a candidate solution population according to the configurations delivered by the outer layer and solves the real optimization task. The two layers are coupled through a bidirectional channel—the outer layer delivers configurations, the inner layer returns task performance, and the outer layer uses this to retain and recombine superior configurations, forming a closed loop of algorithmic self-improvement.

Question 1

In MetaDE's nested structure, what is the direct responsibility of the inner DE?

Iterating candidate solutions on the specific optimization task and reporting task performance

Evolving the mutation strategies and parameters used by the inner algorithm

Determining the outer population size and the number of available parallel devices

Evaluating the quality of the outer search process

Question 2

What does each individual in the outer DE population represent?

A fixed, unchanging objective function

A set of mutation strategy and parameter configurations for the inner DE

A time record of one inner-layer task evaluation

A candidate solution awaiting evaluation for the task

Question 3

In the interactive closed loop between the inner and outer layers, what is the key information returned from the inner layer to the outer layer?

The crossover probability setting of the outer population

The initial values of the inner algorithm configurations

Performance feedback obtained after the inner layer runs on the task

VRAM usage of parallel devices

Question 4

Why is GPU parallelism especially critical for the practical deployment of MetaDE?

Because only GPUs can execute the mutation and selection of differential evolution

Because nested evaluation multiplies computational overhead, and parallelism can compress the time cost of meta-layer search

Because parallelism guarantees the outer layer will find the globally optimal configuration

Because parallelism eliminates the need to evaluate inner configurations

Question 5

Which of the following accurately describes the difference between MetaDE and "manual tuning" or one-off grid search?

They are completely equivalent, just called by different names

MetaDE has the outer layer directly optimize task variables, while the inner layer only records results

MetaDE only searches numerical parameters and does not involve mutation strategies

MetaDE brings algorithm configurations into the evolutionary loop, where configurations are continuously generated, evaluated, and recombined

Case Study: Evolving the Inner Solver with MetaDE

Read the scenario and answer the two questions below.

A team needs to find high-quality solutions for a logistics route optimization task. Instead of manually setting the mutation strategies and parameters for differential evolution, they adopt MetaDE: the outer DE maintains several "mutation strategy + parameter" configurations, and the inner DE runs on the task according to its assigned configuration, returning route quality and elapsed time. The team has only one 8-GPU server, and the budget for a single full evaluation is limited.

1. Identify in this scenario what belongs to the outer search space and what belongs to the inner solving process; explain the value of placing mutation strategies into outer-layer evolution rather than fixing them manually.

Answer:
The outer search space is the "set of algorithm configurations"—which mutation strategy to use and the corresponding parameter values (such as scaling factor and crossover probability). The outer layer performs selection and recombination over these configurations. The inner solving process maintains candidate solutions on the fixed route optimization task, repeatedly performs mutation, crossover, and selection, and outputs task performance such as solution quality. The value of placing mutation strategies into outer-layer evolution is that the search target expands from "a few numerical values" to "combinations of strategies and parameters." When task structures differ, or when the search is at different stages (more exploration needed early on, more convergence needed later), the appropriate strategy itself changes. Delegating this to outer-layer evolution automatically accomplishes such strategy switching, avoiding the suboptimal results and repetitive trial-and-error that come from manually fixing a single strategy for the long term.

2. Nested evaluation significantly increases total time. Combining GPU parallelism with evaluation budget control, describe concrete measures to make this architecture practical, and explain the trade-offs involved.

Answer:
Concrete measures: (1) Parallel batch evaluation—distribute multiple configurations from one outer batch across multiple GPUs to run the inner DE simultaneously, changing the wall-clock time of one outer iteration from "serial accumulation" to "parallel maximum," significantly compressing meta-layer search time; (2) Tiered evaluation—the inner layer first uses a smaller population size or fewer iterations for quick evaluation, and only the few top-performing configurations undergo full evaluation, forming a coarse-to-fine two-stage screening; (3) Constrained search scope—limit the outer population size and number of iterations, and cache and reuse already-evaluated configurations to avoid redundant computation. Trade-offs: The coarser the inner evaluation, the noisier the performance feedback returned, and the outer layer may select configurations that "happened to win"; the higher the degree of parallelism, the greater the VRAM and scheduling overhead—and parallelism shortens wall-clock time, not total computation. Therefore, a balance must be struck among inner evaluation precision, outer search breadth, and hardware budget, rather than blindly expanding the search.
