MetaDE: Improving Evolutionary Algorithms with Evolutionary Algorithms

The previous pages treatedevolutionary algorithmsas tools for solving problems: a population searches the solution space, and fitness measures how good a candidate solution is. MetaDE takes this relationship one level higher—it treatsthe evolutionary algorithm itselfas the object of evolution, using an outer evolutionary layer to search for “how the inner differential evolution should run.” The optimization goal thus expands from “finding a problem solution” to “improving the solution method.”

Two-Layer Structure: Configuration Evolution and Task Solving

Inner layer (solution space): Runs differential evolution under a given mutation strategy and key parameters (such as scaling factor, crossover rate, and population size) to solve benchmark functions or engineering optimization tasks, and outputs task performance as fitness.
Outer layer (algorithm configuration space): Each individual encodes one algorithm configuration; its fitness is not computed on its own, but determined by the performance returned by the inner layer after solving the task with that configuration. Based on this, the outer layer performs selection, recombination, and mutation to produce algorithmic behavior better suited to the current task.
Closed loop: Configuration generation → Task solving → Performance feedback → Configuration update. These four steps repeat in a cycle, allowing the algorithm to adaptively improve with the task rather than relying on manually fixed parameters.

Key Distinction: Configuration Space ≠ Solution Space

The inner layer searches for “the answer to the problem,” while the outer layer searches for “an algorithm that is better at finding answers.” Although the two are coupled—the quality of the outer layer can only be measured by actually running the inner layer—they differ in what they search, how they encode, and how they are evaluated. Recognizing this gets you to the general skeleton of meta-optimization:Making the search itself the object being searched.

Meta-Optimization Perspective

Traditional approaches rely on experience to manually fix differential evolution parameters; MetaDE hands this step over to search as well. The cost follows: each time the outer layer evaluates a configuration, it must run a full inner-layer solve, multiplying the computational budget. Therefore, the granularity of the configuration space and the evaluation budget must be carefully balanced.

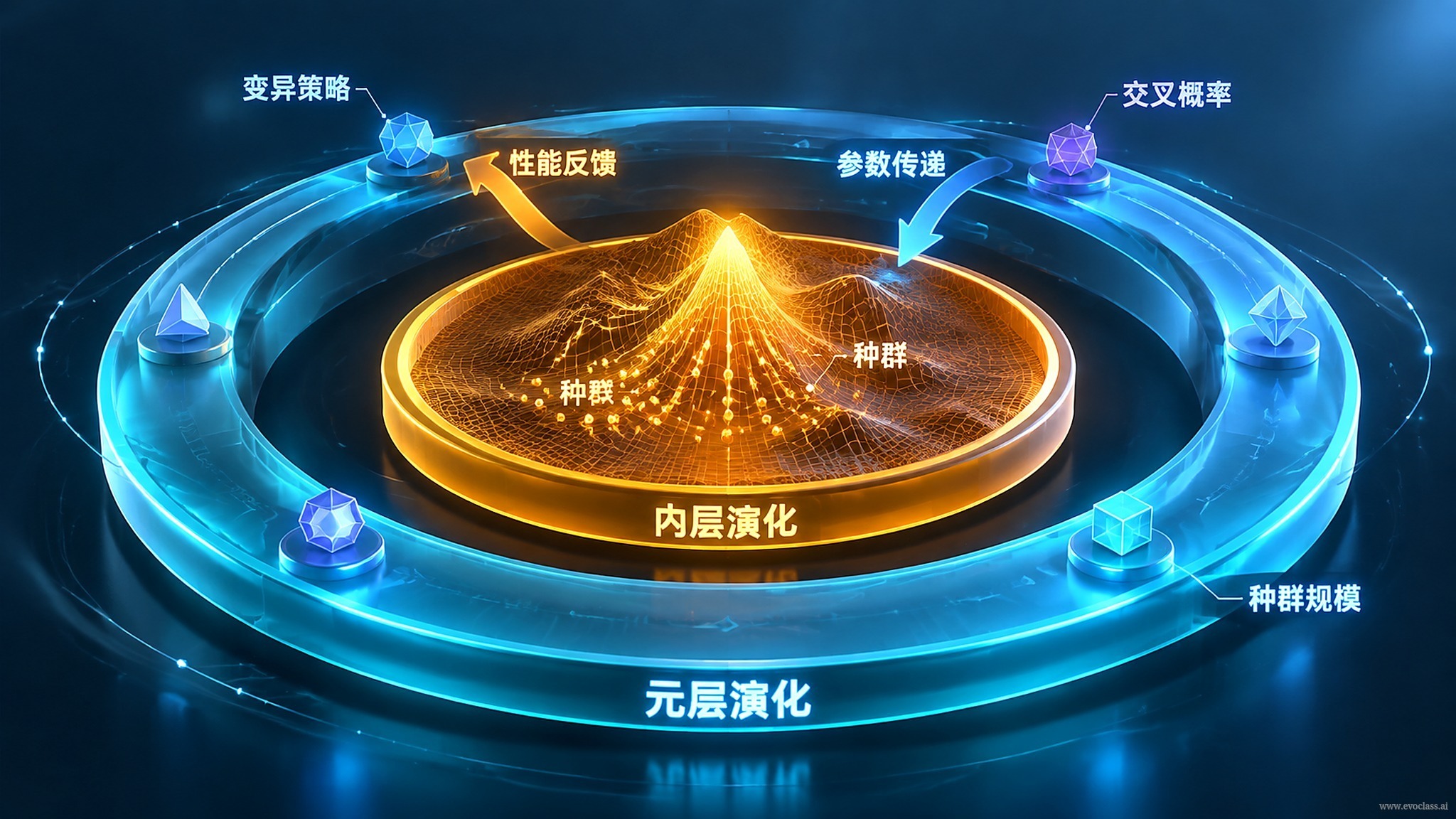

Schematic of the MetaDE Dual-Layer (Inner/Outer) Evolutionary Architecture

Observe the schematic of the MetaDE dual-layer evolutionary architecture and think about how it relates to the idea that “MetaDE organizes differential evolution into inner and outer layers.”

Question 1

What does MetaDE extend the optimization object from “candidate solutions to a problem” to?

Scheduling schemes for hardware computing power

Sampling distributions of training data

The set of candidate solutions to a problem

The evolutionary algorithm’s own mutation strategies and key parameter configurations

Question 2

In MetaDE’s two-layer structure, which layer is responsible for solving the actual task?

The outer layer, which directly computes the task’s fitness

Both layers search for candidate solutions directly on the task

The inner layer, which runs differential evolution under a given configuration to solve the task

Neither—task solving is handled by an external module

Question 3

What is the main information the inner-layer algorithm returns to the outer layer to guide configuration evolution?

A list of mutation strategy names

The gene sequences of population individuals

Task performance, such as fitness and other performance metrics

Random number seeds

Question 4

Regarding “configuration space” and “solution space,” which of the following statements is correct?

The outer layer searches for candidate solutions directly in the solution space

The inner layer searches for solutions in the solution space, and the outer layer searches for algorithm configurations in the configuration space

They are the same space, just with different names

The configuration space and solution space are completely independent and do not affect each other

Question 5

What is the sequence of MetaDE’s closed-loop process?

Configuration generation → Task solving → Performance feedback → Configuration update

Task solving → Configuration generation → Performance feedback → Configuration update

Performance feedback → Configuration generation → Task solving → Configuration update

Configuration update → Performance feedback → Configuration generation → Task solving

Case: Adaptively Configuring Differential Evolution for a Specific Engineering Task

Read the scenario and answer the questions.

An engineering team needs to deploy a differential evolution solver for a structural parameter optimization task. In the past, they relied on experience to fix parameters, but when facing new tasks, repeatedly tuning parameters by hand was time-consuming and unstable in performance. The team decides to introduce MetaDE: mutation strategies and key parameters are handed over to outer-layer evolution, the inner layer actually solves the task with candidate configurations, and task performance drives outer-layer updates.

1. In this scenario, what does an outer-layer individual typically need to encode? How does the outer layer obtain the basis for evaluating whether a configuration is good or bad?

Answer:
An outer-layer individual encodes one algorithm configuration, typically including: the type of mutation strategy (e.g., DE/rand/1/bin, DE/best/1/bin, etc.), as well as key control parameters such as scaling factor F, crossover rate CR, and population size NP, which can be encoded with a mix of real-valued vectors and discrete options. The outer layer cannot prove on its own whether a configuration is good or bad; its fitness comes from the inner layer: run differential evolution once to completion on the target structure optimization task with that configuration, and take performance metrics such as convergence accuracy, number of function evaluations required, or runtime as feedback. To reduce noise caused by inner-layer randomness, you can run it multiple times and take the average as that individual’s fitness.

2. To verify that MetaDE truly provides gains compared with manually chosen parameters, how should a controlled experiment be designed? What costs and risks must also be considered?

Answer:
Key points for the controlled design: keep variables controlled—same task, same evaluation budget (e.g., the same cap on function evaluations), same initial population, and the same set of random seeds; the control group uses classic DE configurations with experiential parameters (e.g., DE/rand/1/bin with fixed F and CR); the experimental group uses configurations evolved by MetaDE; both groups are independently repeated multiple times, comparing final solution quality and convergence curves, and performing statistical tests to rule out chance. Costs and risks: each time the outer layer evaluates a configuration, it must run a full inner-layer solve, multiplying the computational budget; the evolved configuration may overfit to the current task, and the gain may disappear when the task changes; inner-layer performance noise can mislead the outer layer’s selection and cause it to choose the wrong configuration, so a sufficient number of repetitions and a robust evaluation protocol are needed.
