Using Surrogate Models to Address High Simulation Costs

In complex engineering design tasks such as supercritical airfoils,high-fidelity simulation(CFD, finite element analysis) often takes anywhere from tens of minutes to several hours per evaluation. If such simulations are embedded directly into the evolutionary loop, every individual in each generation must be evaluated one by one, quickly draining the computational budget within a few dozen generations and shrinking the explorable search space accordingly.

surrogate models(also called approximation models or metamodels) replace or partially replace high-fidelity simulation with low-cost approximations: they learn an input–output mapping from existing simulation samples and rapidly predict the performance of candidate designs during multi-objective evolutionary optimization, thereby overcoming the bottleneck of expensive high-accuracy simulation.

Why High-Fidelity Simulation Cannot Simply Be Dropped into the Evolutionary Loop

Source of the bottleneck: For problems such as supercritical airfoils and structural strength, a single CFD / finite element simulation is time-consuming, while evolutionary algorithms must evaluate the entire population in every generation, so the number of evaluations consumes the computational budget in roughly a linear fashion.
Direct consequence: The budget is consumed within just a few generations, forcing the population size and number of iterations to shrink, making it hard to fully explore the multi-objective front, and effectively locking off the real design space because it is "too expensive to evaluate."

Basic Principles of Surrogate Models

Using baseline airfoils, perturbed samples, and otherexisting datato train a mapping of "candidate design → objective values and constraint performance," it becomes acheap approximate evaluator. In the evolutionary loop, candidates are first scored in batches by the surrogate, and only a few candidates with top scores or large uncertainty are sent to high-fidelity simulation for verification.

Four Steps of the Acceleration Path

Offline training: Train the surrogate model on initial sampling data to establish a preliminary input–output mapping.
:: In each generation, predict multiple objective values for all candidates simultaneously, replacing point-by-point high-fidelity simulation.
Surrogate-assisted selection: Combine predicted values with uncertainty to select candidates with high potential or high information content.
Backfill correction: Write a small number of high-fidelity results back into the sample library and incrementally update the surrogate so that subsequent predictions stay close to the true response surface.

Trade-off Between Accuracy and Cost

The more complex the surrogate model (from simple regression to Gaussian processes and deep networks), the more accurate it usually is—but the training and inference overhead also rises. The key constraint is thatthe surrogate must be significantly faster than the high-fidelity simulation, otherwise it becomes the new bottleneck; at the same time, its accuracy must be sufficient to support selection pressure, otherwise evolution will be steered in the wrong direction.

Limits and Risks

A surrogate is only reliable near its training distribution. When the search pushes candidates into out-of-distribution regions, predictions may produce plausible-looking but badly off values that mislead the search direction. Practical countermeasures include: outputting uncertainty estimates, setting confidence thresholds for screening, forcing out-of-bounds candidates through high-fidelity validation, and periodically checking surrogate quality with actual error statistics.

Common Misconception

A surrogate model is not a "more accurate simulation" but a "cheaper approximation." Its value comes from concentrating the scarce high-fidelity budget on the most critical and most uncertain candidates—not from removing the verification step.

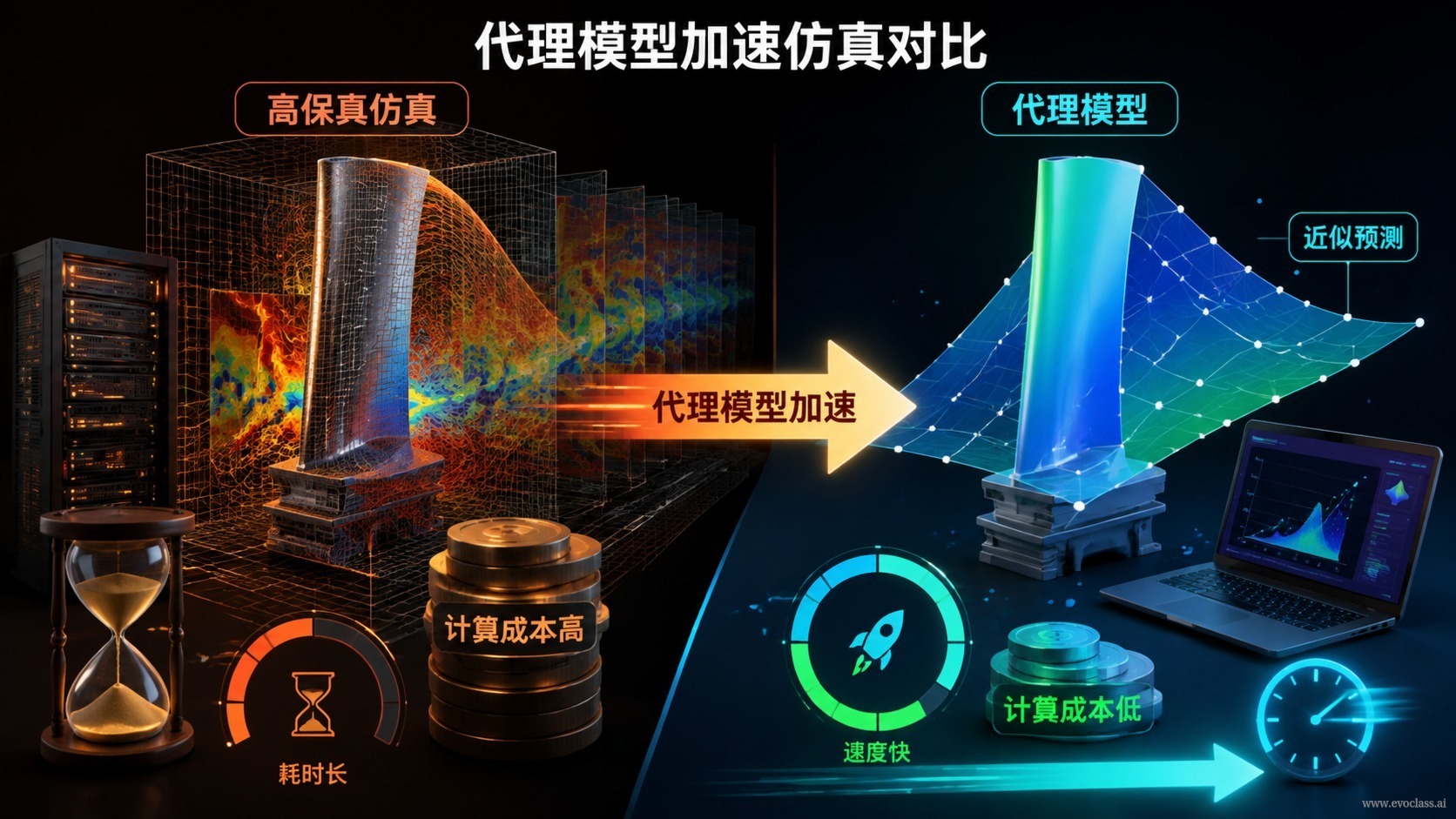

Surrogate Model Acceleration Comparison

The figure compares the evaluation workflow of high-fidelity simulation versus surrogate models in evolutionary optimization: the former is time-consuming per point and cannot sustain large-population, multi-generation search, while the latter learns a mapping from candidate designs to objective values using existing samples and performs fast batch predictions. Only top-ranked or high-uncertainty candidates are sent for high-fidelity verification, and the results are backfilled to update the surrogate, concentrating the scarce simulation budget on the key candidates.

Question 1

What is the most fundamental change when introducing a surrogate model into an evolutionary optimization loop?

Replacing "run high-fidelity simulation on every candidate" with "bulk approximate screening via surrogate model + small number of high-fidelity verifications"

Replacing the surrogate model with high-fidelity simulation to improve accuracy

Eliminating high-fidelity simulation and using the surrogate model's output directly as the final design

Compressing the population size to single digits to save computational budget

Question 2

In high-cost simulation problems, why is it often infeasible to evaluate the population one by one with high-fidelity simulation?

High-fidelity simulation can only give constraint values, not objective values

High-fidelity simulation cannot handle multi-objective problems

Evolutionary algorithms require the objective function to be differentiable everywhere

A single simulation is expensive, so evaluating the entire population every generation quickly exhausts the computational budget

Question 3

Regarding the accuracy and cost of surrogate models, which of the following statements is correct?

The simpler the model, the more accurate it is, so the simplest linear approximation should be used whenever possible

Accuracy and cost are independent, so model complexity can be increased freely

More complex models are usually more accurate, but training and inference costs also rise, so the complexity must match the speed of the evolutionary search

As long as there are enough samples, a surrogate model can be arbitrarily complex without additional overhead

Question 4

When the evolutionary search pushes candidate solutions into regions outside the training sample distribution, what is the most likely risk?

The surrogate model automatically switches to high-fidelity simulation

The surrogate model's prediction error is necessarily zero

Surrogate predictions may deviate severely from the true values, misleading the search direction

The search space automatically shrinks back within the training distribution

Question 5

In surrogate-assisted optimization, what is the main purpose of backfilling a small number of high-fidelity simulation results to update the surrogate model?

Reduce the number of candidate solutions to speed up convergence

Keep correcting the surrogate toward the true response surface to reduce subsequent prediction bias

Replace uncertainty estimation to judge whether a candidate is feasible

Increase the surrogate model's storage overhead, making it harder to use

Case Study: Surrogate-Assisted Multi-Objective Design of a Supercritical Airfoil

Read the scenario and answer the following questions.

A team needs to perform multi-objective aerodynamic design for a supercritical airfoil, with goals including reducing drag, maintaining lift, and satisfying several geometric and structural constraints. A single high-fidelity CFD evaluation takes more than tens of minutes, and the team's total computational budget allows only a few hundred high-fidelity simulations. If candidates were evaluated one by one directly in the evolutionary loop, the budget would be exhausted in a very short time. The team plans to introduce a surrogate model, build an initial sample library from baseline airfoils and perturbed samples, and reserve high-fidelity simulation for the most critical candidates.

1. Design a surrogate-assisted multi-objective evolutionary optimization workflow, explaining where the surrogate model fits and the role of each stage.

Answer:
A possible workflow: ① Initial sampling—run a small number of high-fidelity CFD evaluations on baseline airfoils and perturbed samples (e.g., Latin hypercube sampling) to build a sample library; ② Offline training—train a surrogate model (e.g., Kriging / Gaussian process or neural network) on the samples to learn the mapping from design variables to objectives such as drag and lift and to constraints; ③ Online batch prediction—use the surrogate in the evolutionary loop to rapidly predict multiple objectives and constraints for all candidates, serving as a cheap evaluator; ④ Screening—select high-potential candidates based on predicted performance and uncertainty; ⑤ High-fidelity verification—run real CFD only on a small number of critical candidates to confirm their performance; ⑥ Backfill update—write the verification results back into the sample library and incrementally update the surrogate; ⑦ Iterate—repeat until the budget is exhausted or results converge, then output the high-fidelity-validated candidate designs. The surrogate model sits at the "batch evaluation" layer; what it replaces is point-by-point high-fidelity evaluation, not the verification step.

2. If you find that surrogate predictions deviate significantly from high-fidelity results, how would you control the risk and allocate the limited high-fidelity budget?

Answer:
Control approach: ① Introduce uncertainty estimation, reducing trust in candidates with high prediction variance or far from training samples; ② Set confidence thresholds so that out-of-bounds candidates go directly to high-fidelity verification rather than being accepted based on surrogate conclusions; ③ Reserve part of the budget for additional sampling and exploration, prioritizing candidates with high diversity and high uncertainty to improve distribution coverage; ④ Continuously monitor surrogate quality using actual error statistics (such as mean squared error, maximum deviation, and rank correlation), and retrain or add samples when errors consistently exceed thresholds; ⑤ Prioritize allocating the high-fidelity budget to candidates whose objective trade-offs lie near the front, avoiding spending budget on clearly inferior solutions. This maintains both an accuracy baseline and search coverage.
