Designing an Open, Decoupled Foundation Architecture

EvoX's core premise is that researchers should not spend their time on parallel communication, device allocation, and distributed fault tolerance. The system is therefore split into five top-level modules—Algorithm,Problem,Workflow,Monitorand the Runtime Scheduler. The first four answer "what to evolve, how to evolve, how to organize, and how to observe," while the Runtime Scheduler answers "where to compute and how to make it run." Once this boundary is drawn, researchers only need to focus on "how to evolve," while the underlying system handles scheduling computation onto GPUs, accelerators, or distributed clusters.

Responsibility Boundaries of the Five Modules

Algorithm: Describes only the search and update logic (selection, crossover, mutation, update rules). It is not bound to any specific problem and is not aware of which card the tensors reside on.
Problem: Provides a unified evaluation interface externally, packaging business-side simulations, objective functions, or environments into a form the foundation can call directly.
Workflow: Organizes the evolution process by stage (initialization, iterative evolution, convergence determination, etc.), deciding "what to do first and what to do next."
Monitor: Collects metrics at each stage and records population states and convergence curves for analysis and debugging.
Runtime Scheduler: As the unified execution layer, it abstracts away heterogeneous compute differences, distributes batched computation to GPUs, accelerators, or distributed clusters, and takes over parallelism and communication details.

Portability Benefits of Decoupling

This "high cohesion, low coupling" interface collaboration keeps algorithms and problems independent of each other, and problems independent of compute. When a researcher implements a new mutation operator, they only need to complete the evolution logic within the algorithm module; the problem module continues to provide the unified evaluation interface, the workflow and monitor modules keep their original organization, and the Runtime Scheduler automatically distributes batched tensor computation to GPUs or distributed clusters—no modifications to the underlying execution code are needed.

Because the interfaces are stable, this foundation can support multiple evolutionary scenarios simultaneously—reinforcement learning, genetic programming, combinatorial optimization, and more—avoiding the need to repeatedly build parallel, scheduling, and distributed execution infrastructure for each domain. It's important to distinguish that decoupling reduces "duplicate engineering," not "computing power": whether the layering is truly efficient still requires benchmark experiments to verify that scheduling overhead is acceptable.

Common Misconception

Misunderstanding decoupling as "more abstraction layers means slower performance." What truly determines performance is how the Runtime Scheduler handles batched computation and device utilization, not the number of modules. To judge whether this holds, compare end-to-end latency, device utilization, and communication share on the same problem.

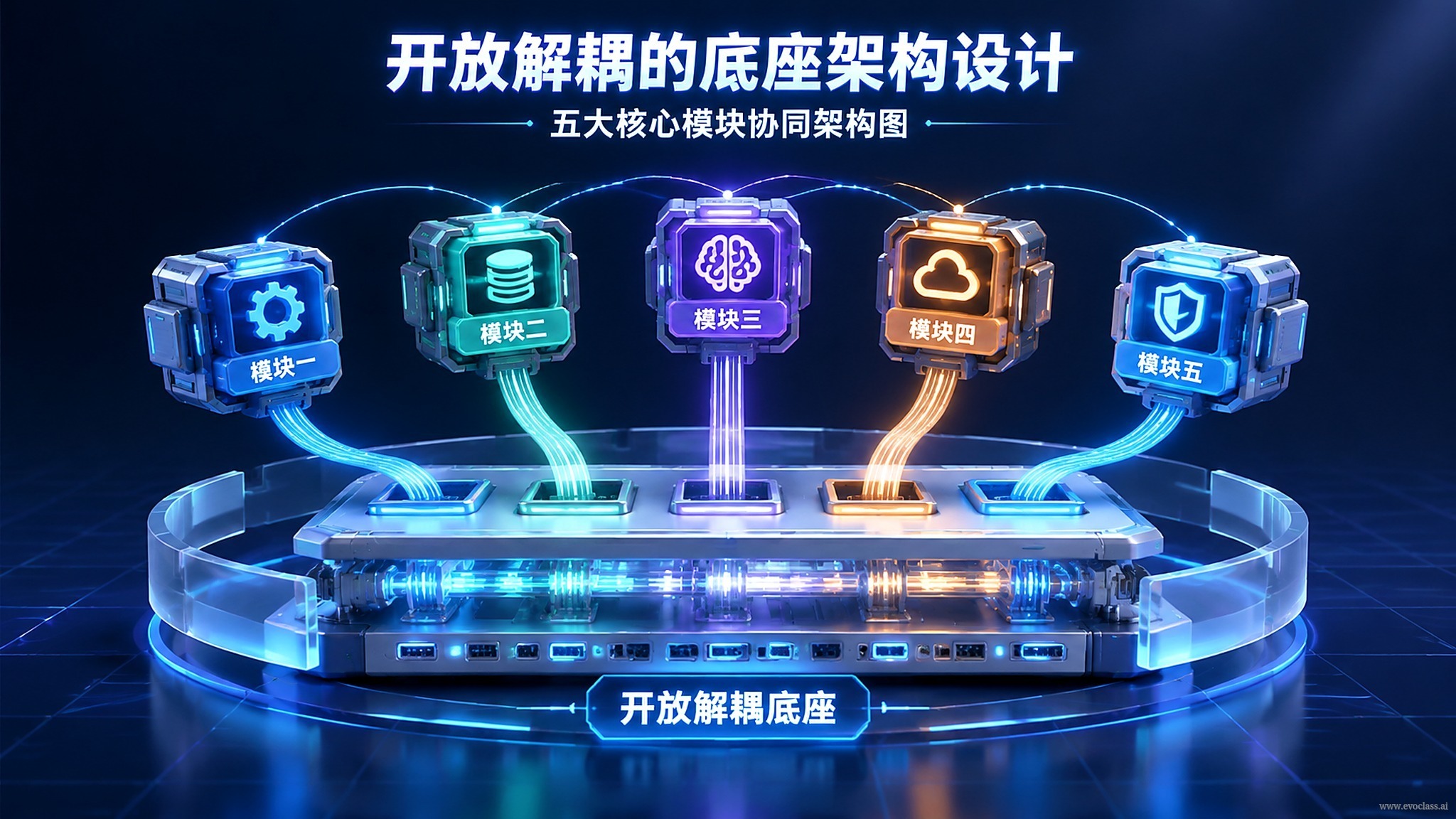

EvoX Five Core Modules Collaborative Architecture Diagram

The EvoX foundation consists of five top-level modules: Algorithm, Problem, Workflow, Monitor, and Runtime Scheduler. The first four answer what to evolve, how to evolve, how to organize, and how to observe, while the scheduler is responsible for distributing batched computation to GPUs, accelerators, or distributed clusters. Once this boundary is drawn, researchers only need to focus on evolution logic, while parallel communication, device allocation, and distributed fault tolerance are handled uniformly by the underlying system.

Question 1

In EvoX's open decoupled foundation, which of the following is NOT one of its five core modules?

Algorithm

Hyperparameter tuner

Runtime Scheduler

Problem

Question 2

What is the most accurate manifestation of "high cohesion, low coupling" in the EvoX foundation?

Writing parallel scheduling logic into the algorithm module to reduce the total number of modules

Merging the algorithm module and Runtime Scheduler into a single module to improve performance

All modules sharing the same global state to reduce the number of interfaces

The algorithm module is internally self-consistent while not bound to specific problems; the problem module is also not aware of underlying compute

Question 3

What is the core responsibility of the Runtime Scheduler within the foundation?

Determining evolutionary parameters such as population size, crossover and mutation probabilities

Defining the evaluation interface and objective function for specific problems

Abstracting away the differences between GPUs, accelerators, and distributed clusters for the upper layer, and unifying scheduled execution

Recording the best fitness and convergence curve of each generation

Question 4

When a researcher implements a new mutation operator, what typically needs to be changed under the decoupled design?

The Runtime Scheduler must be recompiled separately for different hardware

The problem module's evaluation interface must be modified to accommodate the new operator

Only the new mutation logic needs to be implemented in the algorithm module; the problem, workflow, monitor, and Runtime Scheduler remain unchanged

The communication code for distributed execution must be rewritten in sync

Question 5

What is the most direct significance of this foundation providing unified open access for multiple scenarios such as reinforcement learning, genetic programming, and combinatorial optimization?

Enabling all domains to share the same fitness function

Enabling each domain to reuse the same engineering infrastructure, avoiding the repeated construction of parallel and scheduling systems for each domain

Requiring algorithms across different domains to use exactly the same operator set

Guaranteeing that any problem can be solved optimally in polynomial time

Case Study: Migrating a Lab Evolution Workflow to a Multi-Node Cluster

Read the scenario and answer the two questions below.

A team has already built a combinatorial optimization prototype with EvoX: selection, crossover, and mutation operators are customized in the algorithm module; the problem module encapsulates business constraints and provides a unified evaluation interface externally; the workflow is organized into three stages—"initialization, iterative evolution, convergence determination"; and the monitor module records the best solution and constraint violations for each generation. Now they want to scale the experiment to a multi-node GPU cluster and reuse the same codebase to support future reinforcement learning tasks. A disagreement has emerged within the team: some advocate writing device allocation and process communication directly inside each operator to "get close to the hardware and squeeze out performance"; others believe they should rely entirely on the Runtime Scheduler and write no execution-layer code at all.

1. According to the open decoupled foundation design, which parts need to change in this expansion, and which should remain unchanged? Explain with reference to the responsibility boundaries of the five modules.

Answer:
What should remain unchanged are the algorithm module (evolution logic such as selection, crossover, and mutation), the problem module (unified evaluation interface and constraint encapsulation), the workflow (three-stage organization), and the monitor module (recording content and observation timing)—their responsibilities are independent of the compute form. What needs to change or be reconfigured is the execution-side Runtime Scheduler: it distributes batched tensor computation to the multi-node GPU cluster, handling parallelism, communication, and device allocation. The researcher's effort is focused on "how to evolve" and the problem interface, and the underlying execution code does not need to be rewritten due to changes in cluster size—this is precisely the goal of the decoupled foundation.

2. Regarding the debate over "writing device allocation and communication by hand inside operators versus relying entirely on the Runtime Scheduler," please provide an evaluation approach and validation plan based on layered responsibilities.

Answer:
Evaluation approach: First determine which layer the change falls into. Device allocation and process communication are execution-layer responsibilities; writing them into operators couples compute details into the algorithm module, breaking the boundary that "algorithms aren't bound to problems, problems aren't aware of compute," and requiring further modifications to algorithm code when hardware changes or scaling to distributed clusters later. Validation plan: Using the same combinatorial optimization problem as a benchmark, separately measure (a) the pure Runtime scheduling approach and (b) hand-written scheduling within operators in terms of end-to-end latency, device utilization, and communication overhead share, and additionally record the migration cost when switching to another class of hardware or another domain task (such as reinforcement learning). Only consider local inlining when the hand-written approach delivers reproducible, significant gains that are sufficient to compensate for coupling and migration costs; otherwise, maintain the decoupled foundation and focus optimization on the Runtime Scheduler's batched computation and device utilization strategies.
