Hands-On: Comparative Analysis of Computational Efficiency

This page grounds the "computational efficiency comparison" in a reproducible hands-on exercise:compare the end-to-end efficiency of traditional CPU serial individual iteration versus EvoX GPU tensor batching on the same evolutionary task. The goal is not to memorize the conclusion that "GPUs are faster," but to understand where the speedup from tensorized parallelism actually comes from, what its costs are, and where its limits lie.

Two Baselines, One Task

CPU Serial Baseline: each individual calls the evaluation function in a loop, so every generation requires N separate scheduling, state update, and result aggregation steps. Loop control, interpreter overhead, and scattered memory access dilute effective compute, and the more individuals there are, the higher the share of these "non-computational" costs becomes.
GPU Tensor Reference Implementation: EvoX organizes the population, evaluation inputs, and runtime state as tensors, executing evaluations and operators in batches on the GPU, with a single call covering the entire candidate set—greatly reducing serial loops and scheduling overhead.

Measurement Protocol: Making the Comparison Reproducible

A reproducible comparison mustfix the problem, population size, number of generations, and random seed, then record: per-generation wall-clock time, total elapsed time, throughput (evaluations/sec), speedup, plus GPU utilization and memory usage. Before timing, you need towarm upto rule out the effects of first-time compilation and memory allocation, and performdevice synchronizationat the timing points, while tracking compute time and host–device data transfer time separately. Miss any of these steps, and the resulting speedup may be distorted.

Where the Difference Comes From, and What Constrains It

Source of benefits: batch parallelism, tensorized operators, and on-device parallelism let a single call process the entire candidate set, completing more evaluations per unit time.
Constraints: batch size, problem dimensionality, how vectorizable the evaluation function is, host–device copy overhead, and kernel launch overhead all affect the final speedup. A batch that is too small lets launch overhead eat into the gains; if the evaluation function cannot be vectorized, batching has almost nothing to work with.

Practical Takeaways

The right order is:first verify whether the evaluation function can be batched, then compare CPU and GPU implementations. Ultimately, the efficiency advantage should translate into "more generations or more candidate solutions within the same compute budget" and inform deployment choices and experimental design—rather than simply chasing a pretty speedup number.

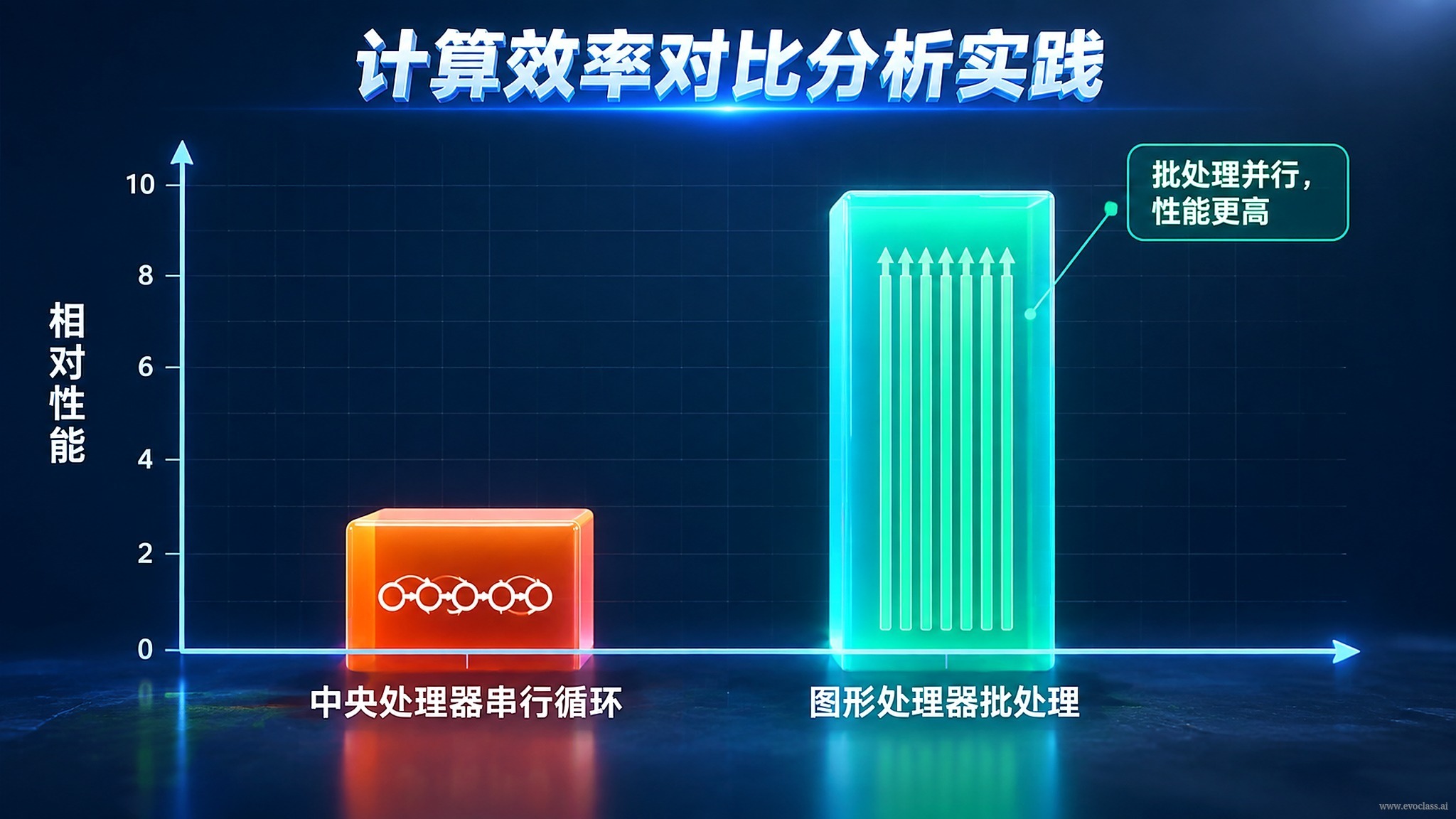

CPU Serial vs. GPU Batching Efficiency Comparison

In this comparison, the CPU serial baseline evaluates individuals one by one in a loop, requiring N scheduling and state updates per generation, with interpreter and memory access overhead diluting effective compute; GPU batching organizes the population and evaluation inputs as tensors, with a single call covering the entire candidate set. The speedup is constrained by batch size, how vectorizable the evaluation function is, and host–device copy overhead.

Question 1

In the baseline CPU implementation that iterates over individuals serially, where does most of the time per generation go?

Host–device data transfer overhead

GPU kernel launch overhead

Batch reduction overhead of tensorized operators

The scheduling, interpreter, and scattered memory access overhead of calling the evaluation function separately for each individual

Question 2

What is the key mechanism that lets EvoX reduce serial overhead through batch evaluation on the GPU?

Organizing the population, evaluation inputs, and runtime state as tensors so that a single call covers the entire candidate set

Automatically shrinking the population size to reduce the computation per generation

Increasing the precision of individual evaluations, thereby reducing the number of generations

Using fewer random seeds to reduce resampling

Question 3

Which of the following best matches a well-defined protocol for measuring computational efficiency comparisons?

Skip device synchronization at timing points to capture the most complete asynchronous execution

Report only total elapsed time, without fixing the random seed

Fix the problem, population size, generations, and seed; warm up and synchronize the device before timing; and distinguish compute time from data transfer time

Compare only different GPU batch sizes, with no need for a CPU baseline

Question 4

Why must you synchronize the device before measuring GPU time?

GPUs often execute asynchronously; without synchronization, timing may miss computations that have not yet finished, underestimating the actual elapsed time

Synchronization directly increases the GPU's peak compute throughput

Synchronization resets the random seed to ensure reproducibility

Synchronization eliminates all host–device data transfers

Question 5

When the evaluation function is poorly vectorizable, how does the efficiency advantage of GPU batching typically change?

It automatically stabilizes at a fixed 10× speedup

It instead grows without bound as the batch size increases

It is entirely unaffected by vectorizability, with a constant speedup

It weakens noticeably, and gains may even be limited by copy and kernel launch overhead

Case Study: A Reproducible Efficiency Comparison Experiment

Read the experimental design below, answer the two questions, and explain the basis for your judgment and your reasoning process.

A team wants to compare a CPU serial implementation with an EvoX GPU tensor batching implementation on the same evolutionary task. The problem is high-dimensional, the evaluation function consists mostly of vectorizable numerical operations with only a small amount of per-individual post-processing, and they plan to fix the problem, population size N=512, number of generations, and random seed, while recording per-generation wall-clock time, total elapsed time, throughput, and speedup. During an initial trial run, one member timed the GPU side without device synchronization and used those results to claim roughly a 9× speedup externally; meanwhile, another member tested with an extremely small batch (b=8) and got only about a 1.2× speedup.

1. Why is the "roughly 9× speedup" obtained without device synchronization likely untrustworthy? How should the experiment be corrected?

Answer:
GPUs use an asynchronous execution model: after the host dispatches a kernel, it continues executing without waiting for completion. If no device synchronization is performed at the timing point, the measured time may only cover the kernel dispatch stage and miss computations still in progress, so the GPU time is severely underestimated and the speedup is inflated. The fix: call device synchronization at each timing point so that timestamps are read only after all dispatched work has truly finished; also run warm-up iterations first to rule out first-time compilation and memory allocation overhead, and track host–device data transfer time separately from pure compute time. Only per-generation and total elapsed times measured with a fixed seed, warm-up, and synchronization can serve as a reliable basis for the speedup.

2. The team also observed that with a small batch (b=8), the speedup was only about 1.2×, which does not contradict the benefits expected from a vectorizable evaluation function. Explain why, and give optimization suggestions.

Answer:
Batch speedup is jointly constrained by batch size, kernel launch overhead, and data transfer overhead. When the batch is too small, there is not enough parallel work on the device, so fixed costs such as kernel launches and host–device copies account for a large share of each generation's time; effective parallelism cannot amortize these costs, and the speedup is naturally compressed to nearly 1. Suggestions: (1) increase the batch size within the limits of available GPU memory (e.g., from b=8 to b=64, b=256, or even larger) so fixed overhead is amortized over more candidate individuals; (2) vectorize the evaluation function and post-processing logic as a whole where possible, reducing device round-trips and per-individual branches; (3) re-measure using a well-defined protocol—fix the problem, population, generations, and random seed, time after warm-up and synchronization, and report per-generation time, total time, throughput, and speedup separately—so you can judge whether the gains truly serve the goal of "more generations or more candidates within the same budget."
